鍍鋅格柵板承載力為什么？如何知道安全承載力的多少？為客戶更好的提供哪一種格柵板扁鋼？

客戶問：溝寬1500mm過4噸的車用什么規格的扁鋼？

客戶問：跨度2000mm經過10車用什么規格的扁鋼？

客戶又問：溝寬50公分用30*3mm扁鋼做格柵板能過5噸的車嗎？

鍍鋅格柵板廠家采集整理資料貢獻給大家，最安全的條件下采購熱鍍鋅鋼格柵板，以免發生意外。

承載力圖表中    C 為中心承載力(1千牛為單位）

                     U為均布承載力（1千牛為單位）

                     D為格柵板受外力的撓度(單位為毫米）

     荷載表的數值計算基于靜止荷載的材料強度設計值(對于碳素結構鋼，強度設計值取170×10³ KN/m²)，包括考慮了鋼格板的重量。

    當設計用于交通道路上的鋼格板時，還應考慮沖擊和疲勞的因素。

   荷載表的數值計算根據承載扁鋼的公稱尺寸進行的，如果承載扁鋼是負公差，應當考慮一個折減系數。同樣，



   承載扁鋼由于沖齒開孔開槽等造成截面尺寸的變化，都應當考慮折減

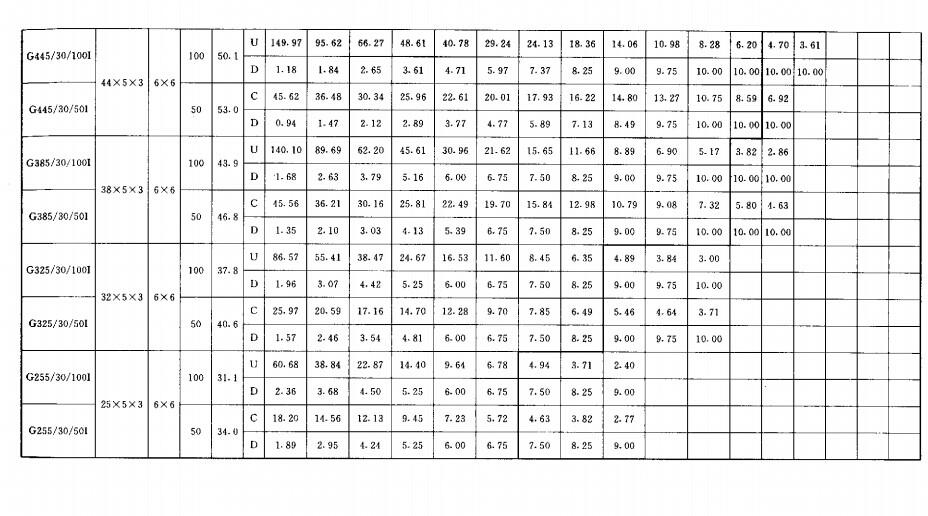

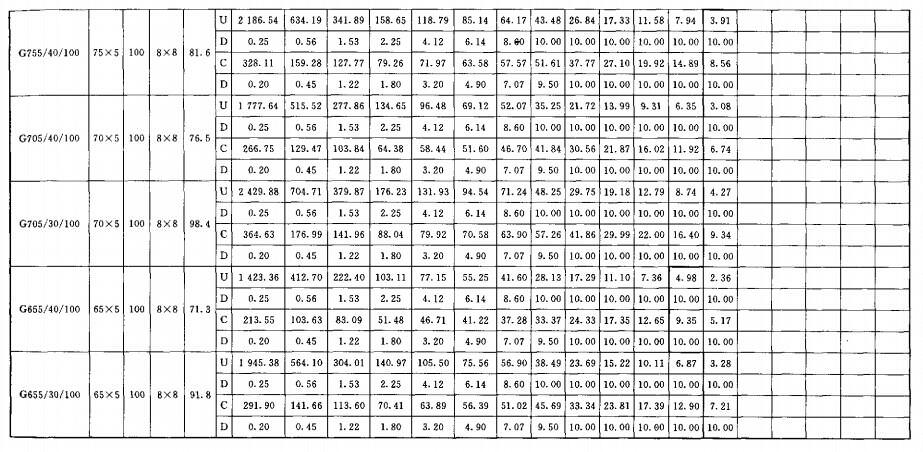

                                                                                                                                                 圖表1

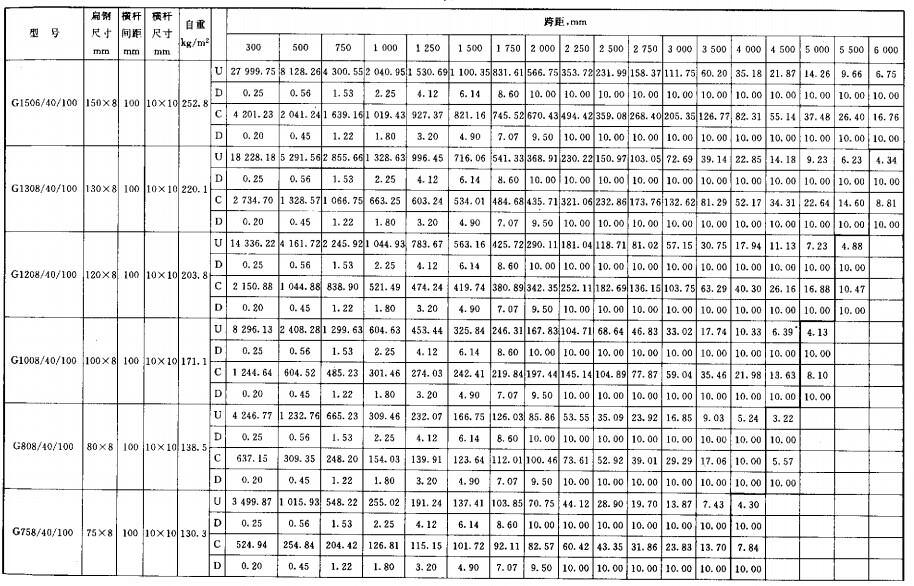

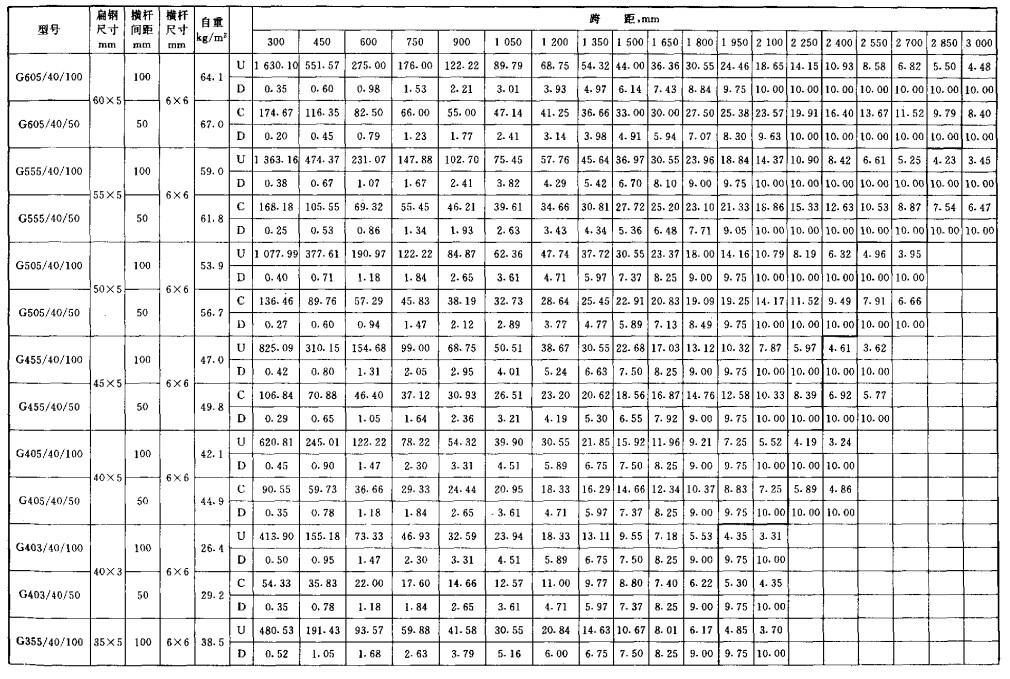

                                                                                                                             圖表2

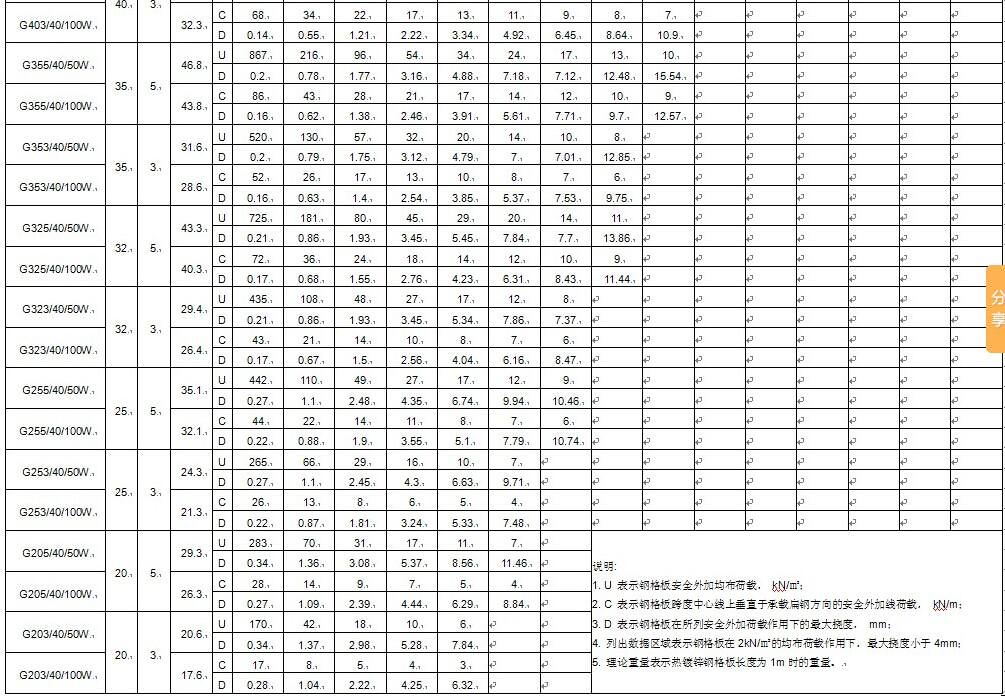

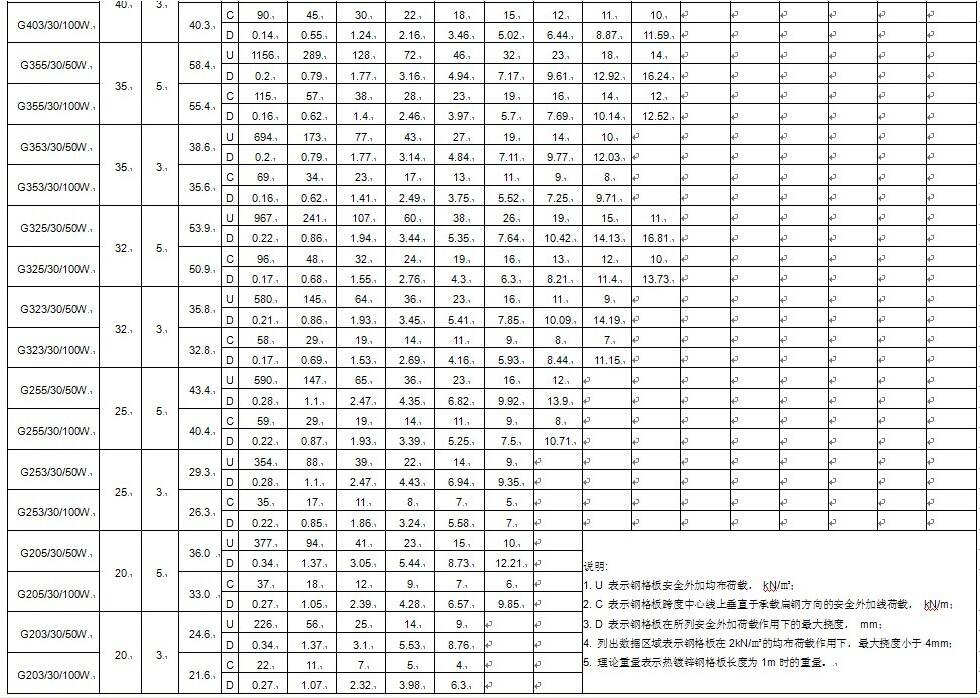

                                                                                                 圖表3

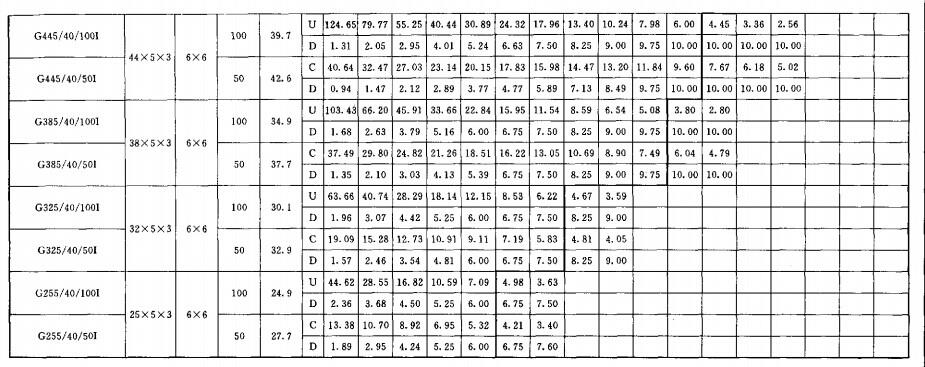

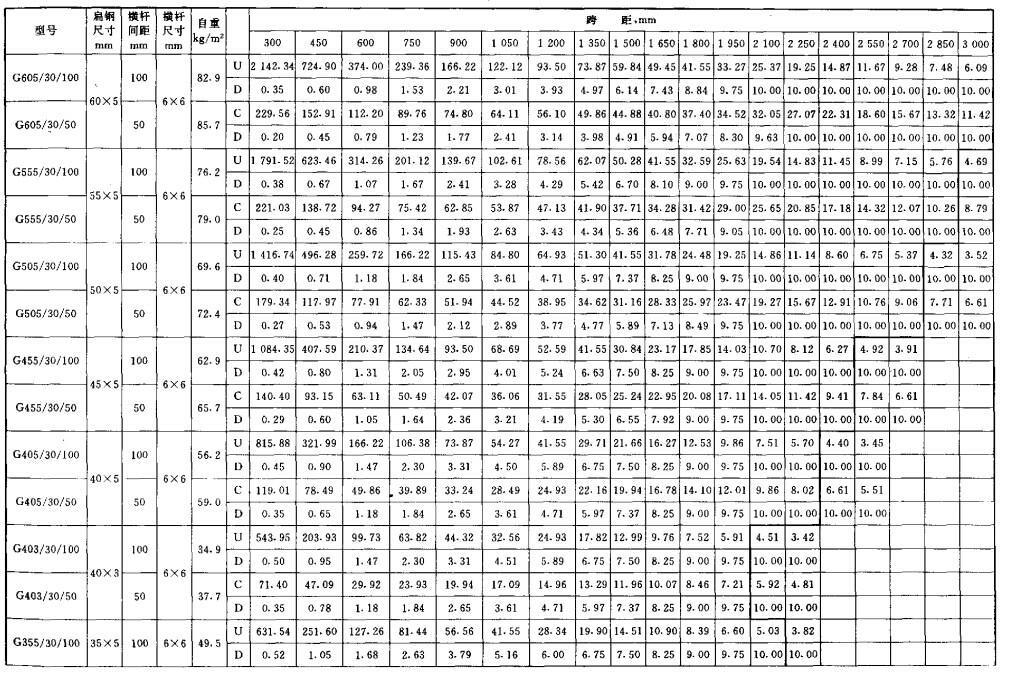

                                                                                              圖表4

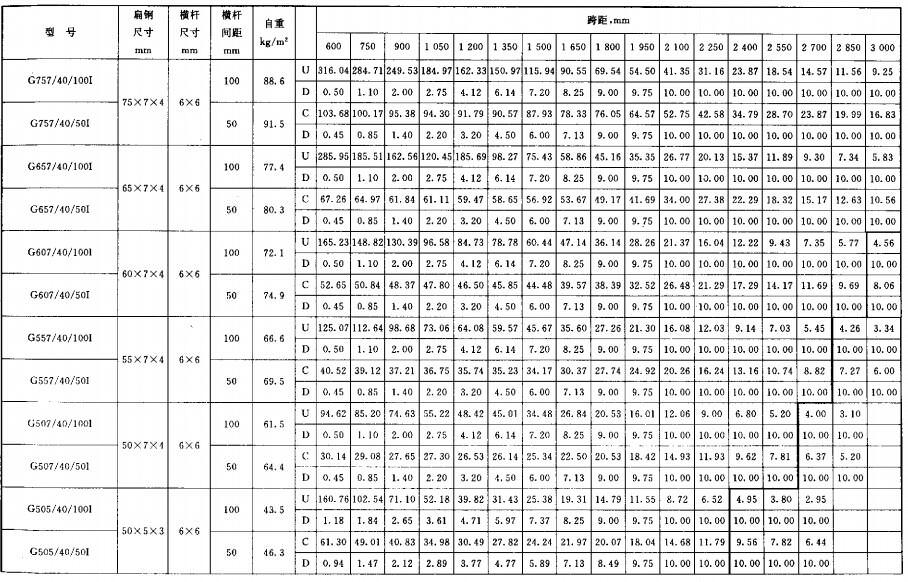

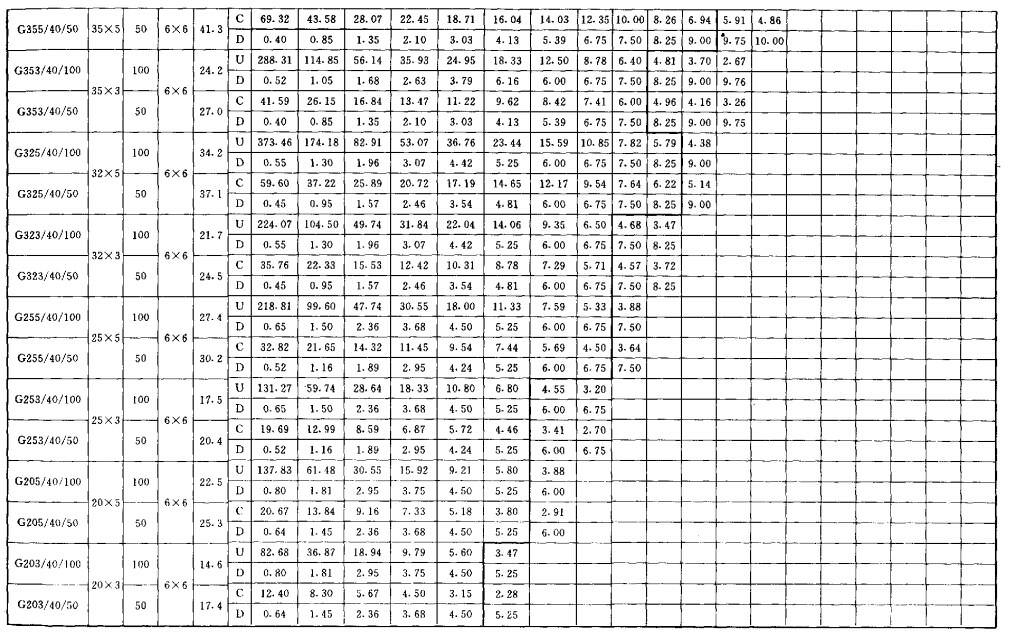

                                                                                                   圖表5

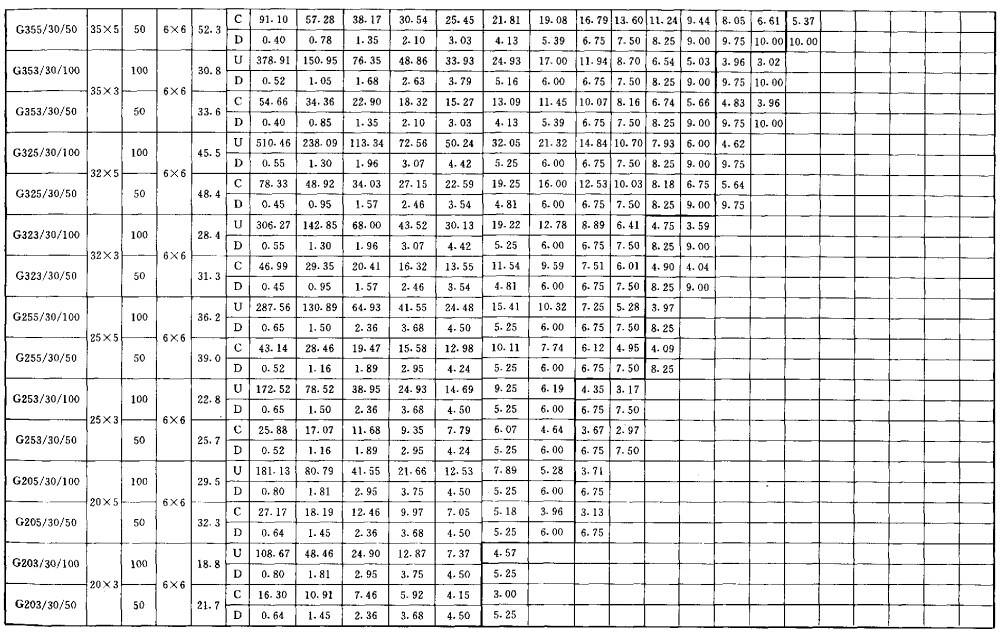

                                                                                           圖表6

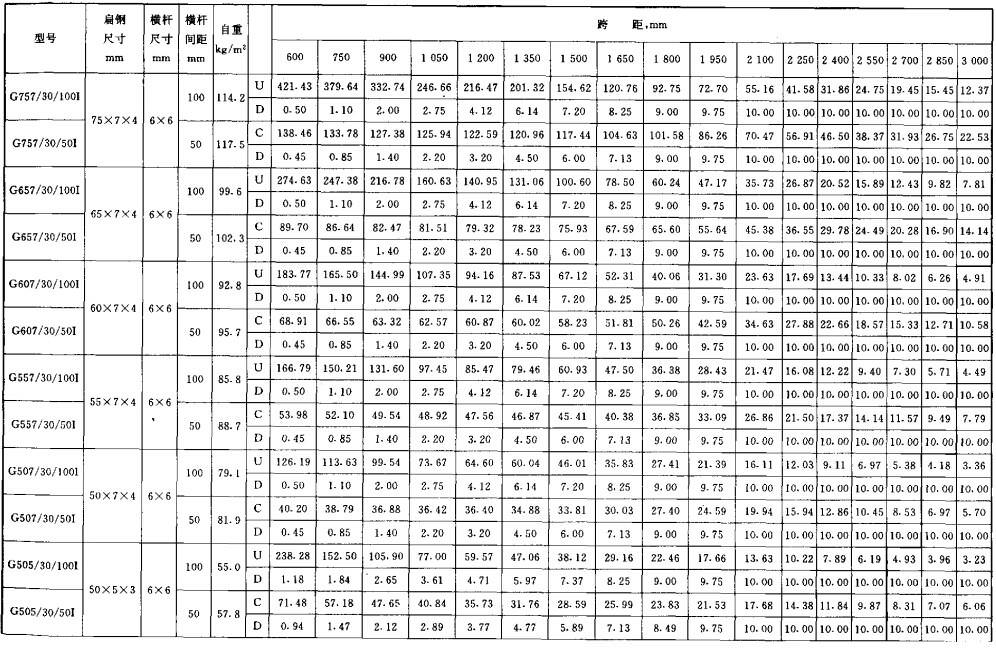

                                                                                               圖表7

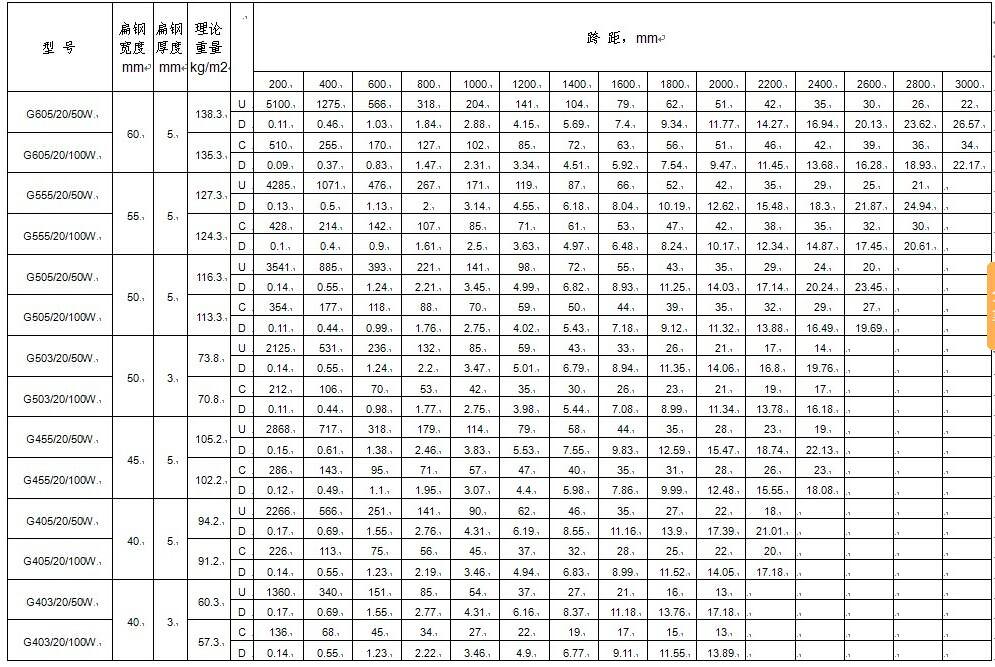

                                                                                               圖表8

                                                                                                 圖表9

                                                                                       圖表10

                                                                                            圖表11

                                                                                               圖表12

                                                                                             圖表13

                                                                                            圖表14

                                                                                             圖表15

                                                                                             圖表16



 承載力圖表1000牛=100公斤大約     那么291.9千牛=29.19噸

U為平均承載

C為中心承載

隆盛鋼格板廠家收集此圖只為客戶與同行業查詢使用
